MC100E154, MC10E154 Datasheet - Motorola

MC100E154 5-BIT 2:1 MUX-LATCH

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 5ĆBit 2:1 MuxĆLatch The MC10E/100E154 contains five 2:1 multiplexers followed by transparent latches with differential outputs. When both Latch Enables (LEN1, LEN2) are LOW, the latch is transparent, and output data is controlled by the multiplexer select control, SEL. A logic HIGH on either LEN1 or LEN2 (or both) latches the outputs. The Master Reset (MR) overrides all other controls to set the Q outputs LOW. 850ps Max. LEN to Output 82.

MC10E154-Motorola.pdf

This datasheet PDF includes multiple part numbers: MC100E154, MC10E154. Please refer to the document for exact specifications by model.

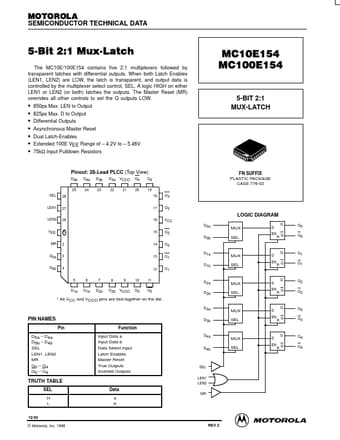

MC100E154 Datasheet Preview Page 2 MC100E154 Datasheet Preview Page 3

Datasheet Details

Part number:

MC100E154, MC10E154

Manufacturer:

Motorola

File Size:

106.95 KB

Description:

5-bit 2:1 mux-latch.

Note:

This datasheet PDF includes multiple part numbers: MC100E154, MC10E154.
Please refer to the document for exact specifications by model.
