MRF1090Mx Datasheet - Motorola

MRF1090Mx MICROWAVE POWER TRANSISTORS

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1090MA/D Microwave Pulse Power Transistors Designed for Class B and C common base amplifier applications in short pulse TACAN, IFF, and DME transmitters. Guaranteed Performance @ 1090 MHz, 50 Vdc Output Power = 90 Watts Peak Minimum Gain = 8.4 dB 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR Industry Standard Package Nitride Passivated Gold Metallize.

MRF1090Mx_Motorola.pdf

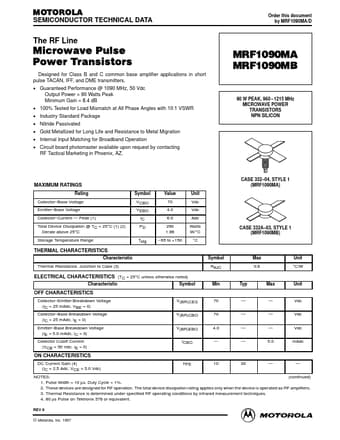

Preview of MRF1090Mx PDF
MRF1090Mx Datasheet Preview Page 2 MRF1090Mx Datasheet Preview Page 3

Datasheet Details

Part number:

MRF1090Mx

Manufacturer:

Motorola

File Size:

104.64 KB

Description:

Microwave power transistors.
