MRF1090MA Datasheet - Motorola

MRF1090MA MICROWAVE POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1090MA/D www.DataSheet4U.com The RF Line Microwave Pulse Power Transistors Designed for Class B and C common base amplifier applications in short pulse TACAN, IFF, and DME transmitters. Guaranteed Performance @ 1090 MHz, 50 Vdc Output Power = 90 Watts Peak Minimum Gain = 8.4 dB 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR Industry Standard Package Nitride Passivated

MRF1090MA Datasheet (106.21 KB)

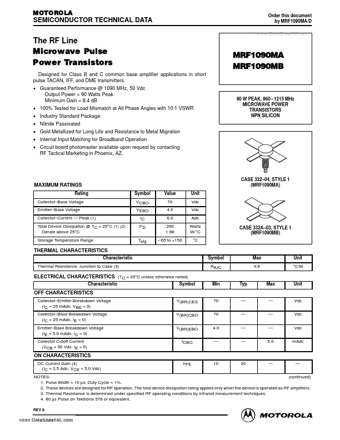

Preview of MRF1090MA PDF

Datasheet Details

Part number:

MRF1090MA

Manufacturer:

Motorola

File Size:

106.21 KB

Description:

Microwave power transistors.
