MRF1150MA Datasheet - Motorola

MRF1150MA (MRF1150MA/B) MICROWAVE POWER TRANSISTORS

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1150MA/D The RF Line Microwave Pulse Power Transistors Designed for Class B and C common base amplifier applications in short pulse TACAN, IFF, and DME transmitters. Guaranteed Performance @ 1090 MHz, 50 Vdc Output Power = 150 Watts Peak Minimum Gain = 7.8 dB 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR Industry Standard Package Nitride Passivated <.

MRF1150MA_Motorola.pdf

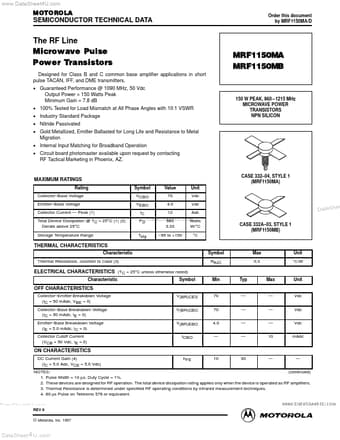

Preview of MRF1150MA PDF
MRF1150MA Datasheet Preview Page 2 MRF1150MA Datasheet Preview Page 3

Datasheet Details

Part number:

MRF1150MA

Manufacturer:

Motorola

File Size:

282.79 KB

Description:

(mrf1150ma/b) microwave power transistors.
