MRF1150MB, MRF1150MA (MRF1150MA/B) MICROWAVE POWER TRANSISTORS

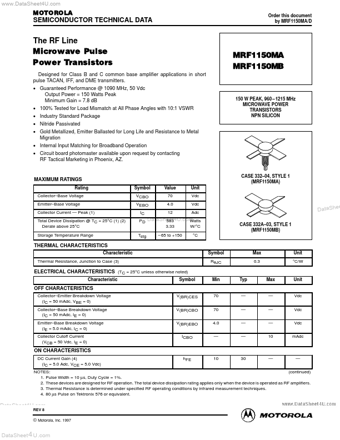

📥 Download Datasheet Datasheet Preview Page 1

Description

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1150MA/D The RF Line Microwave Pulse Power Transistors Design.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF1150MB, MRF1150MA. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MRF1150MB, MRF1150MA
Manufacturer
Motorola
File Size
282.79 KB
Datasheet
MRF1150MA_Motorola.pdf
Description
(MRF1150MA/B) MICROWAVE POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: MRF1150MB, MRF1150MA.
Please refer to the document for exact specifications by model.

Applications

* in short pulse TACAN, IFF, and DME transmitters.
* Guaranteed Performance @ 1090 MHz, 50 Vdc Output Power = 150 Watts Peak Minimum Gain = 7.8 dB
* 100% Tested for Load Mismatch at All Phase Angles with 10:1 VSWR
* Industry Standard Package
* Nitride Passivated
