MTD1N80E TMOS POWER FET

MTD1N80E Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MTD1N80E/D Designer's TMOS E-FET .™ Power Field Effect Transistor DPAK for Surface Mo.

MTD1N80E Features

* nts. If the parasitics were not present, the slope of the curves would maintain a value of unity regardless of the switching speed. The circuit used to obtain the data is constructed to minimize common inductance in the drain and gate circuit loops and is believed readily achievable with board mount

MTD1N80E Applications

* in power supplies, converters and PWM motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients.
* Robust High Voltage Termination

📥 Download Datasheet

Preview of MTD1N80E PDF

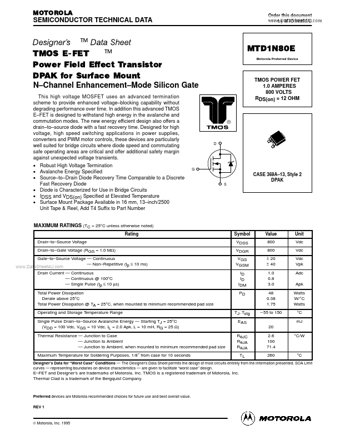

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTD1N80E
Manufacturer
Motorola
File Size
216.70 KB
Datasheet
MTD1N80E_Motorola.pdf
Description
TMOS POWER FET
