NCE2003 Datasheet, Mosfet, NCE Power Semiconductor

NCE2003 Features

  • Mosfet
  • N-Channel VDS = 20V,ID =3A RDS(ON) < 65mΩ @ VGS=4.5V RDS(ON) < 90mΩ @ VGS=2.5V
  • P-Channel VDS = -20V,ID = -3A RDS(ON) < 110mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V

PDF File Details

Part number:

NCE2003

Manufacturer:

NCE Power Semiconductor

File Size:

357.32kb

Download:

📄 Datasheet

Description:

N & p-channel enhancement mode power mosfet. The NCE2003 uses advanced trench technology to provide excellent RDS(ON) and low gate charge . The complementary MOSFETs may be used

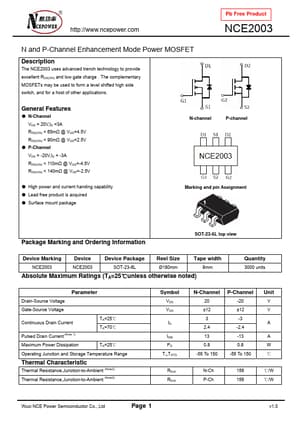

Datasheet Preview: NCE2003 📥 Download PDF (357.32kb)
Page 2 of NCE2003 Page 3 of NCE2003

NCE2003 Application

  • Applications General Features
  • N-Channel VDS = 20V,ID =3A RDS(ON) < 65mΩ @ VGS=4.5V RDS(ON) < 90mΩ @ VGS=2.5V
  • P-Channel VDS = -
