NCE3007S

P-Channel Enhancement Mode Power MOSFET

NCE3007S Features

* VDS =-30V,ID =-6.5A RDS(ON) < 46mΩ @ VGS=-10V RDS(ON) < 72mΩ @ VGS=-4.5V Schematic diagram

* High density cell design for ultra low Rdson

* Fully characterized avalanche voltage and current Application

* Load switch

* battery protection Marking and pin assignment 100% UIS

NCE3007S Datasheet (381.43 KB)

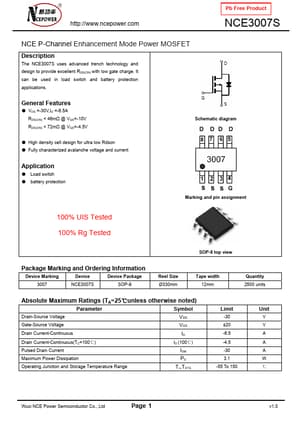

Preview of NCE3007S PDF

Datasheet Details

Part number:

NCE3007S

Manufacturer:

NCE Power Semiconductor

File Size:

381.43 KB

Description:

P-channel enhancement mode power mosfet.
