NCE85H35TC - N-Channel Enhancement Mode Power MOSFET

NCE Power Semiconductor

📥 Download Datasheet

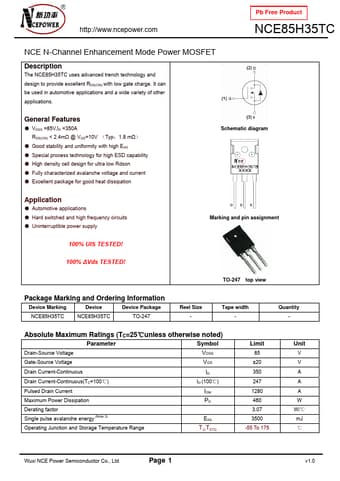

NCE85H35TC Datasheet Preview — Preview of NCE85H35TC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NCE85H35TC
Manufacturer: NCE Power Semiconductor
File Size: 304.72 KB
Datasheet: NCE85H35TC-NCEPowerSemiconductor.pdf
Description: N-Channel Enhancement Mode Power MOSFET

NCE85H35TC Product details

Description

The NCE85H35TC uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDSS =85V,ID =350A RDS(ON) < 2.4mΩ @ VGS=10V （Typ：1.8 mΩ）.
Good stability and uniformity with high EAS.
Special process technology for high ESD capability.
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Excellent package for good heat dissipation Schematic diagram Application.
Automotive.
