NCEP0116AS - N-Channel Super Trench Power MOSFET

Product Overview

NCE Power Semiconductor

Part number	NCEP0116AS
Manufacturer	NCE Power Semiconductor
File Size	414.91 KB
Description	N-Channel Super Trench Power MOSFET
Datasheet	NCEP0116AS Datasheet

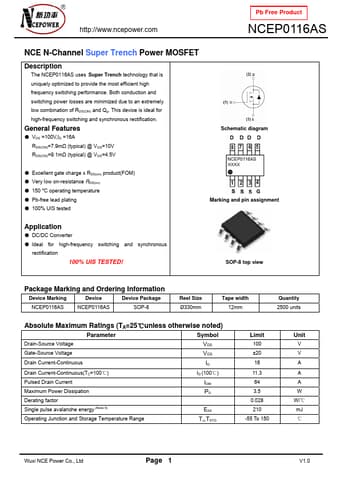

Additional preview pages of the NCEP0116AS datasheet.

The NCEP0116AS uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

VDS =100V,ID =16A RDS(ON)=7.9mΩ (typical) @ VGS=10V RDS(ON)=9.1mΩ (typical) @ VGS=4.5V Schematic diagram.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
150 °C operating temperature.
Pb-free lead plating.
100% UIS tested Marking and pin assignment.
