NCEP0140AL Datasheet - NCE Power Semiconductor

N-Channel Super Trench Power MOSFET

NCEP0140AL Features

* VDS =100V,ID =45A RDS(ON)=18mΩ (typical) @ VGS=10V RDS(ON)=22mΩ (typical) @ VGS=4.5V Schematic Diagram

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Marking and pin

NCEP0140AL General Description

The NCEP0140AL uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

NCEP0140AL Datasheet (375.87 KB)

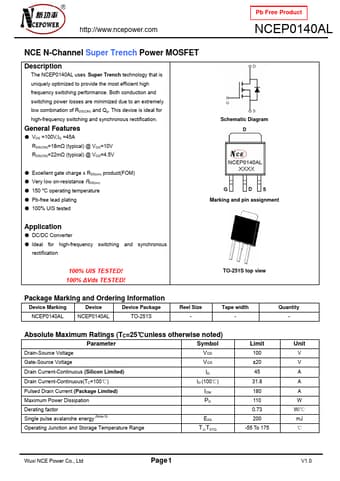

NCEP0140AL Datasheet Preview — Preview of NCEP0140AL PDF

Datasheet Details

Part number:

NCEP0140AL

Manufacturer:

NCE Power Semiconductor

File Size:

375.87 KB

Description:

N-channel super trench power mosfet.
