NCEP02515K

N-Channel Super Trench Power MOSFET

NCEP02515K Features

* VDS =250V,ID =15A RDS(ON)=200mΩ (typical) @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating Application

* LED backlighting

* Ideal for high-frequency switching and synchronous

NCEP02515K General Description

The NCEP02515K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

NCEP02515K Datasheet (376.05 KB)

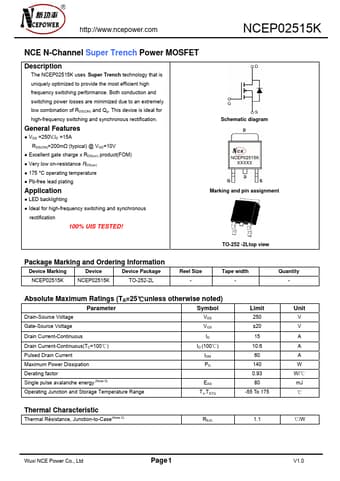

Preview of NCEP02515K PDF

Datasheet Details

Part number:

NCEP02515K

Manufacturer:

NCE Power Semiconductor

File Size:

376.05 KB

Description:

N-channel super trench power mosfet.
