NCEP10N12D Datasheet, Mosfet, NCE Power Semiconductor

NCEP10N12D Features

  • Mosfet
  • VDS =120V,ID =70A RDS(ON)=8.5mΩ , typical (TO-220)@ VGS=10V RDS(ON)=8.2mΩ , typical (TO-263)@ VGS=10V
  • Excellent gate charge x RDS(on) product(FOM)
  • Very low

PDF File Details

Part number:

NCEP10N12D

Manufacturer:

NCE Power Semiconductor

File Size:

413.19kb

Download:

📄 Datasheet

Description:

N-channel super trench ii power mosfet. The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switchi

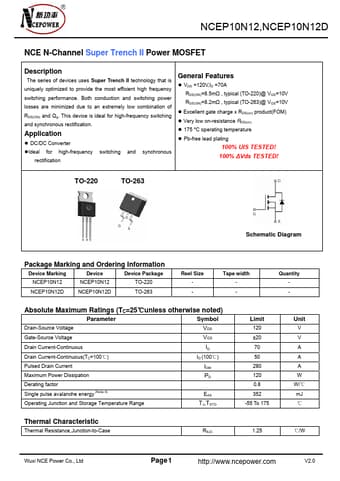

Datasheet Preview: NCEP10N12D 📥 Download PDF (413.19kb)
Page 2 of NCEP10N12D Page 3 of NCEP10N12D
