2SD2164 NPN Silicon Epitaxial Transistor

2SD2164 Description

DATA SHEET SILICON POWER TRANSISTOR 2SD2164 NPN SILICON EPITAXIAL TRANSISTOR FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING The 2SD2164.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

2SD2164 Features

* a small resin insulated package, thus contributing to high-density mounting and mounting cost reduction. PACKAGE DRAWING (UNIT: mm) FEATURES
* High hFE and low VCE(sat): hFE ≅ 1,300 TYP. (VCE = 5.0 V, IC = 0.5 A) VCE(SAT) ≅ 0.3 V TYP. (IC = 2.0 A, IB = 20 mA)
* Full mold package th

2SD2164 Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v

📥 Download Datasheet

Preview of 2SD2164 PDF

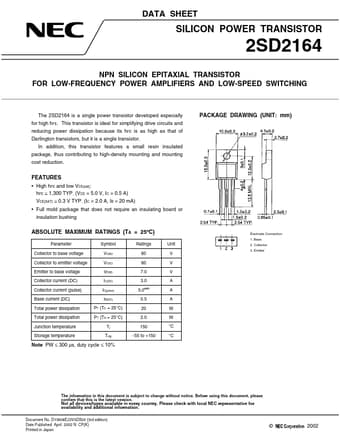

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2164
Manufacturer
NEC
File Size
128.05 KB
Datasheet
2SD2164_NEC.pdf
Description
NPN Silicon Epitaxial Transistor
