2SD2165 Datasheet - NEC

2SD2165 NPN Transistor

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of a customer's equipment shall be done under the full.

2SD2165 Features

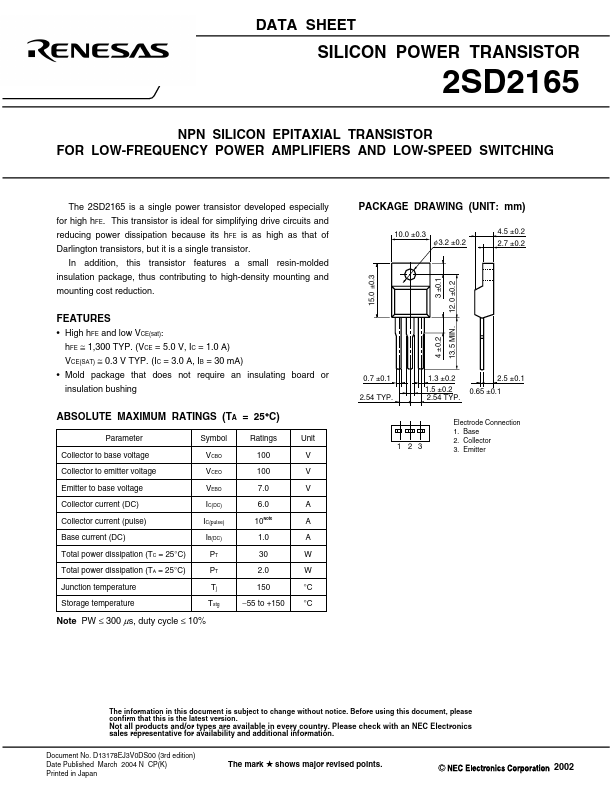

* a small resin-molded PACKAGE DRAWING (UNIT: mm) 10.0 ±0.3 4.5 ±0.2 φ 3.2 ±0.2 2.7 ±0.2 15.0 ±0.3 3 ±0.1 4 ±0.2 mounting cost reduction. FEATURES

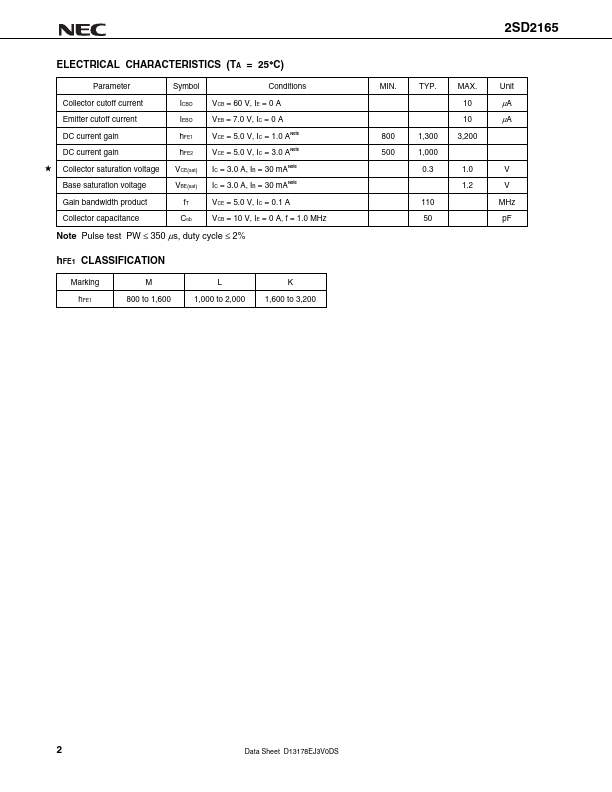

* High hFE and low VCE(sat): hFE ≅ 1,300 TYP. (VCE = 5.0 V, IC = 1.0 A) VCE(SAT) ≅ 0.3 V TYP. (IC = 3.0 A, IB = 30 mA)

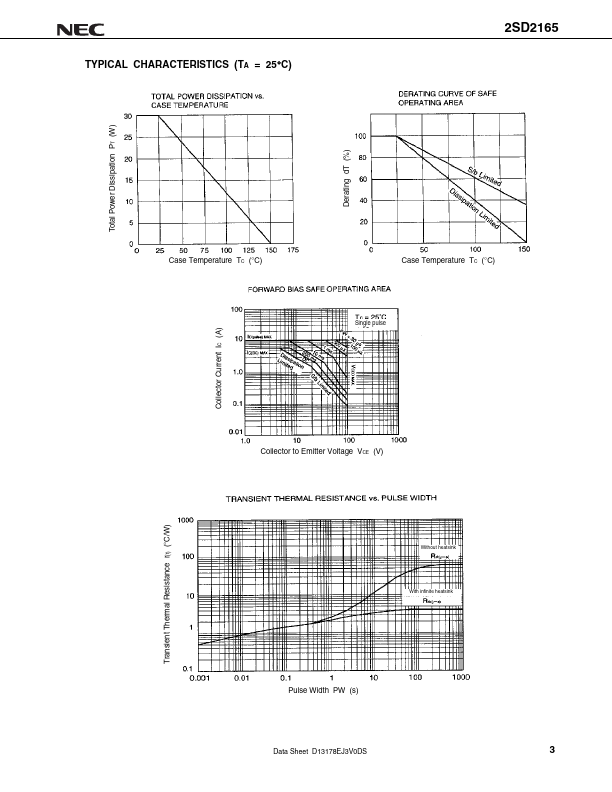

* Mold packag
