K3483 Datasheet, 2sk3483, NEC

K3483 Features

  • 2sk3483
  • Low on-state resistance RDS(on)1 = 52 mΩ MAX. (VGS = 10 V, ID = 14 A) RDS(on)2 = 59 mΩ MAX. (VGS = 4.5 V, ID = 14 A)
  • Low Ciss: Ciss = 2300 pF TYP.
  • Built-in

PDF File Details

Part number:

K3483

Manufacturer:

NEC

File Size:

188.94kb

Download:

📄 Datasheet

Description:

2sk3483. The 2SK3483 is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUM

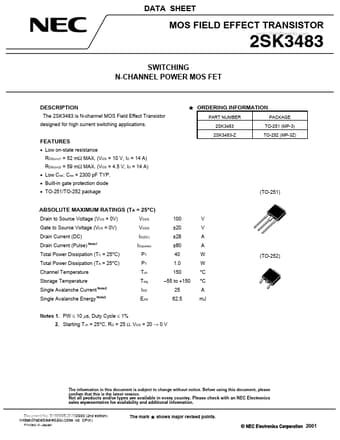

Datasheet Preview: K3483 📥 Download PDF (188.94kb)
Page 2 of K3483 Page 3 of K3483

K3483 Application

  • Applications ORDERING INFORMATION PART NUMBER 2SK3483 2SK3483-Z PACKAGE TO-251 (MP-3) TO-252 (MP-3Z) FEATURES
  • Low on-state resistance R
