K3484

2SK3484

NEC

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	2SK3484-S16-AY	SMALL SIGNAL MOSFET	DigiKey	0	290 units	$1.04	🛒 Buy Now

K3484 Datasheet (164.03 KB)

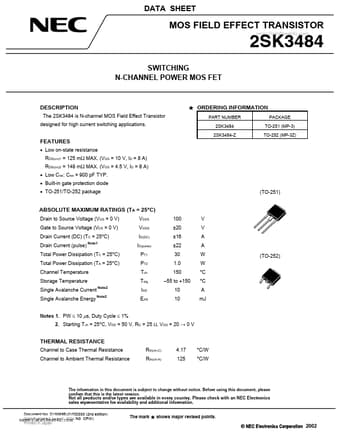

K3484 Datasheet Preview — Preview of K3484 PDF

Datasheet Details

Part number:

K3484

Manufacturer:

NEC

File Size:

164.03 KB

Description:

2sk3484.

K3484 Features

* Low on-state resistance RDS(on)1 = 125 mΩ MAX. (VGS = 10 V, ID = 8 A) RDS(on)2 = 148 mΩ MAX. (VGS = 4.5 V, ID = 8 A)

* Low Ciss: Ciss = 900 pF TYP.

* Built-in gate protection diode

* TO-251/TO-252 package (TO-251) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Sourc
