NP80N03CDE

SWITCHING N-CHANNEL POWER MOSFET

NEC

NP80N03CDE Features

* Channel Temperature 175 degree rated www.DataSheet4U.com

* Super Low on-state Resistance RDS(on)1 = 7.0 mΩ MAX. (VGS = 10 V, ID = 40 A) (TO-262) RDS(on)3 = 11 mΩ MAX. (VGS = 4.5 V, ID = 40 A) RDS(on)2 = 9.0 mΩ MAX. (VGS = 5 V, ID = 40 A)

* Low input capacitance Ciss = 260

NP80N03CDE General Description

These products are N-channel MOS Field Effect Transistors designed for high current switching applications. ORDERING INFORMATION PART NUMBER NP80N03EDE-E1-AY NP80N03EDE-E2-AY NP80N03KDE-E1-AY NP80N03KDE-E2-AY Note1, 2 Note1, 2 Note1 Note1 Note1, 2 Note1, 2 Note1 Note1 LEAD PLATING PACKING PA.

NP80N03CDE Datasheet (249.14 KB)

NP80N03CDE Datasheet Preview — Preview of NP80N03CDE PDF

Datasheet Details

Part number:

NP80N03CDE

Manufacturer:

NEC

File Size:

249.14 KB

Description:

Switching n-channel power mosfet.

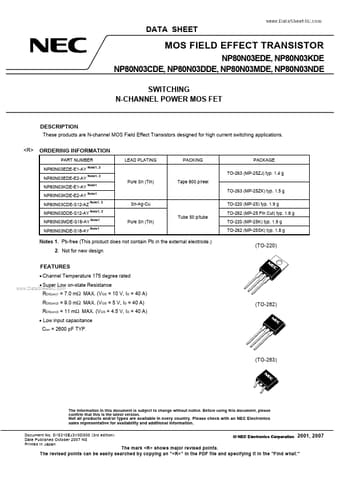

DATA SHEET MOS FIELD EFFECT TRANSISTOR NP80N03EDE, NP80N03KDE NP80N03CDE, NP80N03DDE, NP80N03MDE, NP80N03NDE SWITCHING N-CHANNEL POWER MOS FET DESCR.
