NP80N03CLE - SWITCHING N-CHANNEL POWER MOS FET

NEC

📥 Download Datasheet

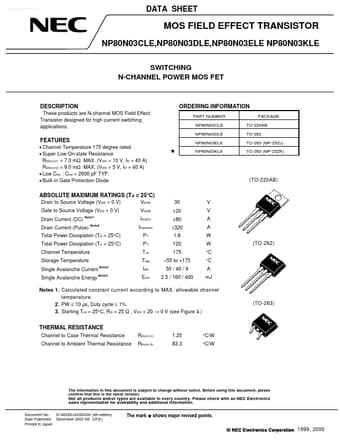

NP80N03CLE Datasheet Preview — Preview of NP80N03CLE PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NP80N03CLE
Manufacturer	NEC
File Size	105.78 KB
Description	SWITCHING N-CHANNEL POWER MOS FET
Datasheet	NP80N03CLE_NEC.pdf

NP80N03CLE Product details

Description

These products are N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

Channel Temperature 175 degree rated.
Super Low On-state Resistance RDS(on)1 = 7.0 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 9.0 mΩ MAX. (VGS = 5 V, ID = 40 A).
Low Ciss : Ciss = 2600 pF TYP.
Built-in Gate Protection Diode 5 NP80N03ELE NP80N03KLE (TO-220AB).
