NP80N03DLE, NP80N03CLE, SWITCHING N-CHANNEL POWER MOS FET

www.DataSheet4U.com DATA SHEET MOS FIELD EFFECT TRANSISTOR NP80N03CLE,NP80N03DLE,NP80N03ELE NP80N03KLE SWITCHING N-CHANNEL POWER MOS FET DESCRIPTIO.
These products are N-channel MOS Field Effect Transistor designed for high current switching applications.

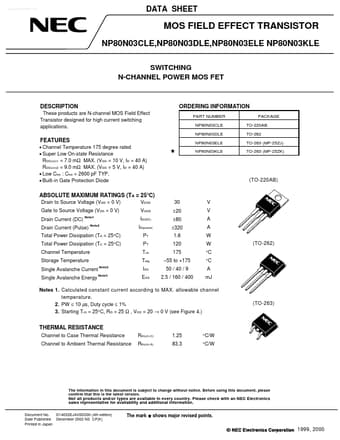

datasheet Preview Page 1 from Datasheet4u.com

NP80N03CLE_NEC.pdf

NP80N03DLE Datasheet Preview — This datasheet PDF includes multiple part numbers: NP80N03DLE, NP80N03CLE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NP80N03DLE, NP80N03CLE

Manufacturer:

NEC

File Size:

105.78 KB

Description:

SWITCHING N-CHANNEL POWER MOS FET

Note:

This datasheet PDF includes multiple part numbers: NP80N03DLE, NP80N03CLE.
Please refer to the document for exact specifications by model.

Features

* Channel Temperature 175 degree rated
* Super Low On-state Resistance RDS(on)1 = 7.0 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 9.0 mΩ MAX. (VGS = 5 V, ID = 40 A)
* Low Ciss : Ciss = 2600 pF TYP.
* Built-in Gate Protection Diode 5 NP80N03ELE NP80N03KLE (TO-220AB)
