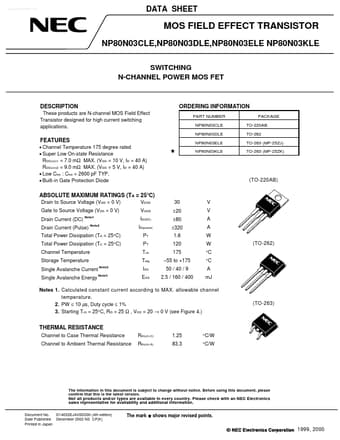

NP80N03ELE Datasheet, Fet, NEC

NP80N03ELE Features

• Fet
• Channel Temperature 175 degree rated
• Super Low On-state Resistance RDS(on)1 = 7.0 mΩ MAX. (VGS = 10 V, ID = 40 A) RDS(on)2 = 9.0 mΩ MAX. (VGS = 5 V, ID = 40 A)

PDF File Details

Part number:

NP80N03ELE

Manufacturer:

NEC

File Size:

111.46kb

Download:

📄 Datasheet

Description:

Switching n-channel power mos fet. These products are N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART

NP80N03ELE Application

• Applications ORDERING INFORMATION PART NUMBER NP80N03CLE NP80N03DLE PACKAGE TO-220AB TO-262 TO-263 (MP-25ZJ) TO-263 (MP-25ZK) FEATURES
