NP80N03EDE, NP80N03DDE, SWITCHING N-CHANNEL POWER MOSFET

DATA SHEET MOS FIELD EFFECT TRANSISTOR NP80N03EDE, NP80N03KDE NP80N03CDE, NP80N03DDE, NP80N03MDE, NP80N03NDE SWITCHING N-CHANNEL POWER MOS FET DESCR.
These products are N-channel MOS Field Effect Transistors designed for high current switching applications.

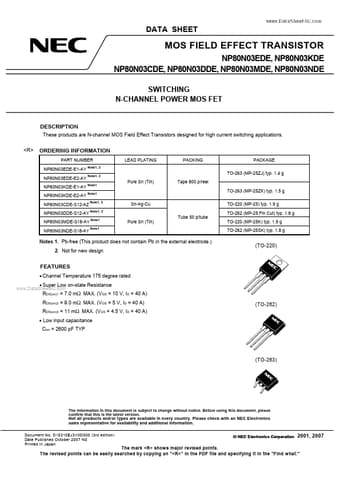

datasheet Preview Page 1 from Datasheet4u.com

NP80N03DDE_NEC.pdf

NP80N03EDE Datasheet Preview — This datasheet PDF includes multiple part numbers: NP80N03EDE, NP80N03DDE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NP80N03EDE, NP80N03DDE

Manufacturer:

NEC

File Size:

249.14 KB

Description:

SWITCHING N-CHANNEL POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: NP80N03EDE, NP80N03DDE.
Please refer to the document for exact specifications by model.

Features

* Channel Temperature 175 degree rated www. DataSheet4U. com
* Super Low on-state Resistance RDS(on)1 = 7.0 mΩ MAX. (VGS = 10 V, ID = 40 A) (TO-262) RDS(on)3 = 11 mΩ MAX. (VGS = 4.5 V, ID = 40 A) RDS(on)2 = 9.0 mΩ MAX. (VGS = 5 V, ID = 40 A)
* Low input capacitance Ciss = 260

Applications

* ORDERING INFORMATION PART NUMBER NP80N03EDE-E1-AY NP80N03EDE-E2-AY NP80N03KDE-E1-AY NP80N03KDE-E2-AY Note1, 2 Note1, 2 Note1 Note1 Note1, 2 Note1, 2 Note1 Note1 LEAD PLATING PACKING PACKAGE TO-263 (MP-25ZJ) typ. 1.4 g Pure Sn (Tin) Tape 800 p/reel TO-263 (MP-25ZK) typ. 1.5 g NP80N03CDE-S
