UPB409-1, UPB429 - 2K x 8-BIT BIPOLA TTL PROM

NEC

📥 Download Datasheet

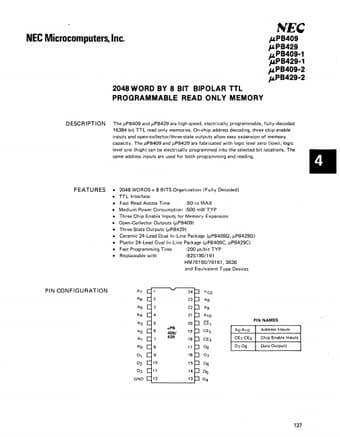

UPB409-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: UPB409-1, UPB429. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPB409-1, UPB429
Manufacturer	NEC
File Size	230.73 KB
Description	2K x 8-BIT BIPOLA TTL PROM
Datasheet	UPB429_NEC.pdf
Note	This datasheet PDF includes multiple part numbers: UPB409-1, UPB429. Please refer to the document for exact specifications by model.

UPB409-1 Product details

Features

2048 WORDS x 8 BITS Organization (Fully Decoded).
TT L Interface.
Fast Read Access Time :50 ns MAX.
Medium Power Consumption :500 mW TyP.
Three Chip Enable Inputs for Memory Expansion.
Open-Collector Outputs (JlPB409).
Three-State Outputs (JlPB429).
Ceramic 24-Lead Dual In-Line Package (JlPB409D, JlPB429D).
Plastic.
