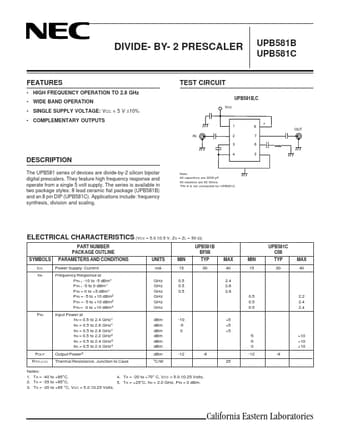

UPB581B Datasheet, prescaler equivalent, NEC

UPB581B Features

• Prescaler
• HIGH FREQUENCY OPERATION TO 2.8 GHz
• WIDE BAND OPERATION
• SINGLE SUPPLY VOLTAGE: VCC = 5 V ±10%
• COMPLEMENTARY OUTPUTS TEST CIRCUIT UPB581B,C VCC

PDF File Details

Part number:

UPB581B

Manufacturer:

NEC

File Size:

87.77kb

Download:

📄 Datasheet

Description:

(upb581b / upb581c) divide- by- 2 prescaler. The UPB581 series of devices are divide-by-2 silicon bipolar digital prescalers. They feature high frequency response and operate fro

UPB581B Application

• Applications include: frequency synthesis, division and scaling. Note: All capacitors are 2200 pF, All resistors are 50 Ohms.
• Pin 8 is not
