UPB582A - DIVIDE-BY-4 PRESCALER

UPB582A Description

DIVIDE-BY-4 PRESCALER UPB582A UPB582B UPB582C .
The UPB582 series of devices are divide-by-4 silicon bipolar digital prescalers.

UPB582A Features

* HIGH FREQUENCY OPERATION TO 2.8 GHz
* WIDE BAND OPERATION
* SINGLE SUPPLY VOLTAGE: VCC = 5 V ±10% TEST CIRCUITS UPB582A VCC 4 3 5 6 1 8 7 IN

UPB582A Applications

* include: frequency synthesizers, division and prescaling. UPB582B, C VCC 1 IN 2 3 4 8 7 6 5
* OUT Note: All capacitors are 2200 pF, all resistors are 50 ohms.
* Pin 8 is not connected for UPB582C. ELECTRICAL CHARACTERISTICS (VCC = 5.0 ±0.5 V, ZS = ZL = 50 Ω) PART NUMBER PACKAGE OUTLINE

📥 Download Datasheet

Preview of UPB582A PDF

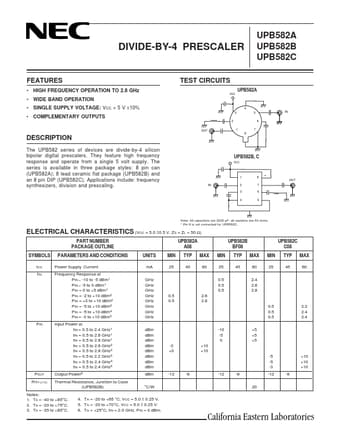

datasheet Preview Page 2 datasheet Preview Page 3
