UPD16662 - 240 OUTPUT LCD COLUMN SEGMENT DRIVER

Product Overview

NEC

📥 Download Datasheet

UPD16662 240 OUTPUT LCD COLUMN SEGMENT DRIVER by NEC - Datasheet Preview — Datasheet preview – UPD16662

Datasheet Details

Part number	UPD16662
Manufacturer	NEC
File Size	260.74 KB
Description	240 OUTPUT LCD COLUMN SEGMENT DRIVER
Datasheet	UPD16662 Datasheet

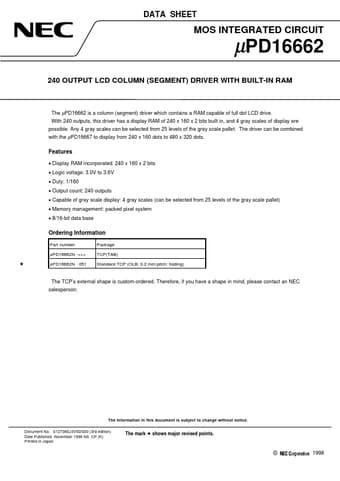

Additional preview pages of the UPD16662 datasheet.

Product details

Features

Display RAM incorporated: 240 x 160 x 2 bits.
Logic voltage: 3.0V to 3.6V.
Duty: 1/160.
Output count: 240 outputs.
Capable of gray scale display: 4 gray scales (can be selected from 25 levels of the gray scale pallet).
Memory management: packed pixel system.
8/16-bit data base Ordering Information Part number Package TCP(TAB) Standard TCP (OLB: 0.2 mm pitch; folding) µPD16662N -×××.
µPD16662N - 051 The TCP’s external s.
