UPD16664

144/160/184/208-OUTPUT LCD COLUMN SEGMENT DRIVER

NEC

UPD16664 Features

* Internal display RAM : 208 x 160 x 2 bits

* Logic voltage

* Duty

* Number of outputs

* Display : 2.4 to 3.6 V : 1/128, 1/160 selectable : 144,160,184 and 208 pins selectable : Four gray levels (selectable from 25-level palette)

* Memory management :

UPD16664 General Description

The µ PD16664 is a column (segment) driver with internal RAM and can drive a full-dot LCD. Equipped with 144/160/184/208-output pins and a display RAM of 208 x 160 x 2 bits, this driver can display any of four gray levels selected from a 25-level palette. By using this IC in combination with the µ P.

UPD16664 Datasheet (347.04 KB)

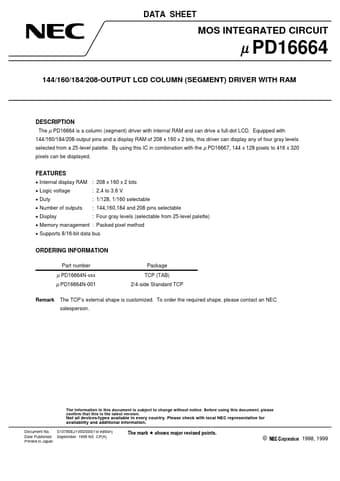

UPD16664 Datasheet Preview — Preview of UPD16664 PDF

Datasheet Details

Part number:

UPD16664

Manufacturer:

NEC

File Size:

347.04 KB

Description:

144/160/184/208-output lcd column segment driver.
