GS7253-ASO-R

5V/12V Single Synchronous Buck Controller

GS7253-ASO-R Features

* 300KHz Constant Switching Frequency

* VBAT Rang= 4.5V~13.2V

* Support 0.6V Internal Reference Voltage

* 0-80% Duty Cycle

* 3.6ms Digital Soft-Start Circuit Built-In

* Short Circuit Protection

* Under Voltage Protection and Over Voltage Protection

* Flexible Over Cur

GS7253-ASO-R General Description

The GS7253-A is a single buck controller working in a voltage mode with fixed 300 kHz frequency. It allows wide input voltage which is either a single 5~12V or two supply voltages for various applications, and the output voltage can be precisely regulated to as low as 0.6V with a maximum tolerance o.

GS7253-ASO-R Datasheet (706.06 KB)

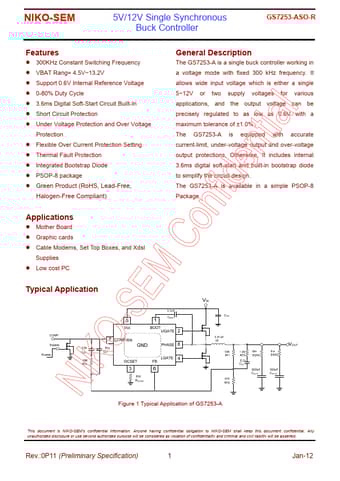

Preview of GS7253-ASO-R PDF

Datasheet Details

Part number:

GS7253-ASO-R

Manufacturer:

NIKO-SEM

File Size:

706.06 KB

Description:

5v/12v single synchronous buck controller.
