GS72108AGP

2Mb Asynchronous SRAM

GS72108AGP Features

* Fast access time: 7, 8, 10, 12 ns

* CMOS low power operation: 135/115/95/80 mA at minimum cycle time

* Single 3.3 V power supply

* All inputs and outputs are TTL-compatible

* Fully static operation

* Industrial Temperature Option:

* 40° to 85°

GS72108AGP General Description

The GS72108A is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTLcompatible. The GS72108A is available in 400 mil TSOP Type-II p.

GS72108AGP Datasheet (86.09 KB)

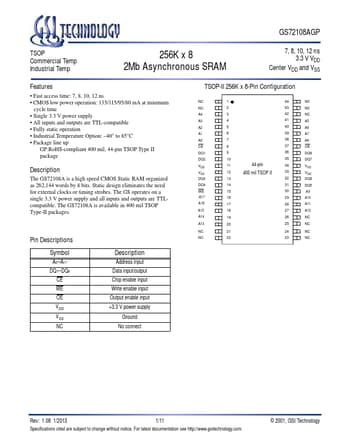

Preview of GS72108AGP PDF

Datasheet Details

Part number:

GS72108AGP

Manufacturer:

GSI Technology

File Size:

86.09 KB

Description:

2mb asynchronous sram.
