GS72116AGP

2Mb Asynchronous SRAM

GS72116AGP Features

* Fast access time: 7, 8, 10, 12 ns

* CMOS low power operation: 145/125/100/85 mA at minimum cycle time

* Single 3.3 V power supply

* All inputs and outputs are TTL-compatible

* Byte control

* Fully static operation

* Industrial Temperature Opt

GS72116AGP General Description

The GS72116A is a high speed CMOS Static RAM organized as 131,072 words by 16 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTLcompatible. The GS72116A is available in a 6 mm x 8 mm Fine Pi.

GS72116AGP Datasheet (101.62 KB)

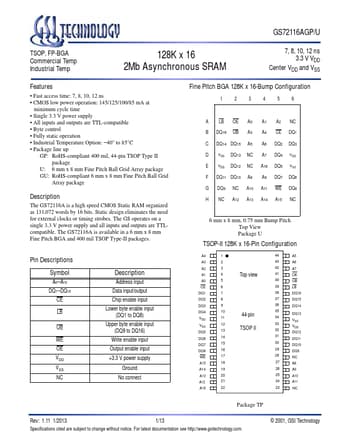

Preview of GS72116AGP PDF

Datasheet Details

Part number:

GS72116AGP

Manufacturer:

GSI Technology

File Size:

101.62 KB

Description:

2mb asynchronous sram.
