GS72108TP

256K x 8 2Mb Asynchronous SRAM

GS72108TP Features

* 256K x 8 2Mb Asynchronous SRAM 8, 10, 12, 15 ns 3.3 V VDD Center VDD and VSS SOJ 256K x 8-Pin Configuration

* Fast access time: 8, 10, 12, 15 ns

* CMOS low power operation: 150/125/110/90 mA at minimum cycle time.

* Single 3.3 V ± 0.3 V power supply

* All inputs a

GS72108TP General Description

The GS72108 is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTL-compatible. The GS72108 is available in 400 mil SOJ and 400 mil.

GS72108TP Datasheet (364.42 KB)

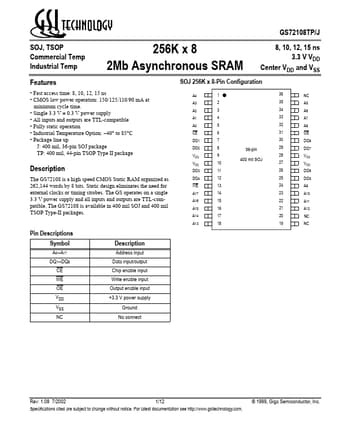

Preview of GS72108TP PDF

Datasheet Details

Part number:

GS72108TP

Manufacturer:

GSI Technology

File Size:

364.42 KB

Description:

256k x 8 2mb asynchronous sram.
