GS72116ATP

2Mb Asynchronous SRAM

GS72116ATP Features

* Fast access time: 7, 8, 10, 12 ns

* CMOS low power operation: 145/125/100/85 mA at minimum cycle time

* Single 3.3 V power supply

* All inputs and outputs are TTL-compatible

* Byte control

* Fully static operation

* Industrial Temperature Opt

GS72116ATP General Description

The GS72116A is a high speed CMOS Static RAM organized as 131,072 words by 16 bits. Static design eliminates the need for external clocks or timing strobes. T.

GS72116ATP Datasheet (396.48 KB)

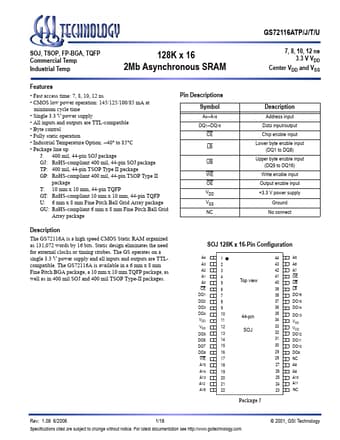

Preview of GS72116ATP PDF

Datasheet Details

Part number:

GS72116ATP

Manufacturer:

GSI Technology

File Size:

396.48 KB

Description:

2mb asynchronous sram.
GS72116ATP/J/T/U SOJ, TSOP, FP-BGA, TQFP Commercial Temp Industrial Temp 128K x 16 2Mb Asynchronous SRAM 7, 8, 10, 12 ns 3.3 V VDD Center VDD and V.
