GS72108ATP

2Mb Asynchronous SRAM

GS72108ATP Features

* Fast access time: 7, 8, 10, 12 ns

* CMOS low power operation: 135/115/95/80 mA at minimum cycle time

* Single 3.3 V power supply

* All inputs and outputs are TTL-compatible

* Fully static operation

* Industrial Temperature Option:

* 40° to 85°

GS72108ATP General Description

The GS72108A is a high speed CMOS Static RAM organized as 262,144 words by 8 bits. Static design eliminates the need for external clocks or timing strobes. The GS operates on a single 3.3 V power supply and all inputs and outputs are TTLcompatible. The GS72108A is available in 400 mil SOJ and 400 mi.

GS72108ATP Datasheet (503.04 KB)

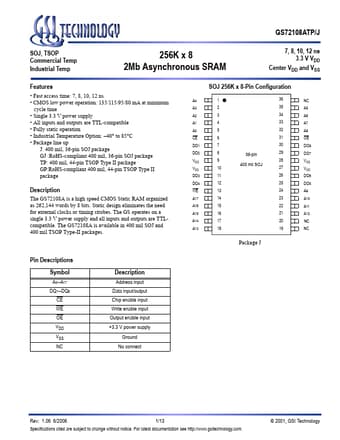

Preview of GS72108ATP PDF

Datasheet Details

Part number:

GS72108ATP

Manufacturer:

GSI Technology

File Size:

503.04 KB

Description:

2mb asynchronous sram.
