NTE738 - Integrated Circuit Color TV Processing Circuit

NTE Electronics

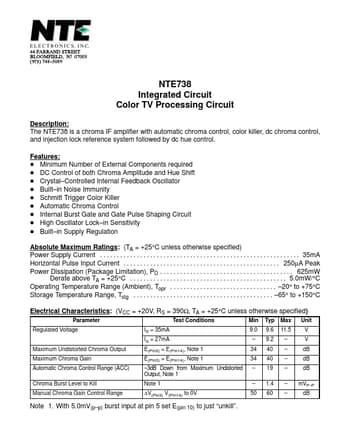

The NTE738 by NTE Electronics is a Integrated Circuit Color TV Processing Circuit. Below is the official datasheet preview.

📥 Download Datasheet

NTE738 Integrated Circuit Color TV Processing Circuit by NTE Electronics - Datasheet Preview — Official preview page of the **NTE738** Integrated Circuit Color TV Processing Circuit datasheet (NTE Electronics).

Datasheet Details

Part number	NTE738
Manufacturer	NTE Electronics
File Size	23.43 KB
Description	Integrated Circuit Color TV Processing Circuit
Datasheet	NTE738_NTEElectronics.pdf
Additional preview pages of the NTE738 datasheet.

NTE738 Product details

Description

The NTE738 is a chroma IF amplifier with automatic chroma control, color killer, dc chroma control, and injection lock reference system followed by dc hue control.

Features

D Minimum Number of External Components required D DC Control of both Chroma Amplitude and Hue Shift D Crystal.
Controlled Internal Feedback Oscillator D Built.
in Noise Immunity D Schmitt Trigger Color Killer D Automatic Chroma Control D Internal Burst Gate and Gate Pulse Shaping Circuit D High Oscillator Lock.
in Sensitivity D Built.
in Supply Regulation Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Power Supply Current.
