NTE736

Integrated Circuit FM IF Amp

NTE736 Features

* full temperature compensation for the IF amplifier and the 7.8V regulator. Excellent power supply rejection eliminates the need for an external regulated supply. An output from the second stage of the IF amplifier provides a means of external gain control without affecting the input or output termin

NTE736 General Description

The NTE736 is a high performance monolithic FM Gain Block using the planar epitaxial process. The FM gain block consist of a three stage direct coupled amplifier with 330Ω input and output terminations and the 7pF shunting capacitance required for a 10.7MHz FM IF strip utilizing commercially availa.

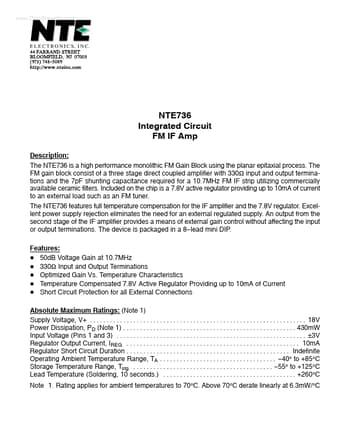

NTE736 Datasheet (105.17 KB)

Preview of NTE736 PDF

Datasheet Details

Part number:

NTE736

Manufacturer:

NTE

File Size:

105.17 KB

Description:

Integrated circuit fm if amp.
