74HC4518

Dual synchronous BCD counter

74HC4518 Features

* Output capability: standard

* ICC category: MSI GENERAL DESCRIPTION The 74HC/HCT4518 are high-speed Si-gate CMOS devices and are pin compatible with the “4518” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4518 are dual 4-bit intern

74HC4518 General Description

The 74HC/HCT4518 are high-speed Si-gate CMOS devices and are pin compatible with the “4518” of the “4000B” series. They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT4518 are dual 4-bit internally synchronous BCD counters with an active HIGH clock input (nCP0) and an active LOW.

74HC4518 Datasheet (119.67 KB)

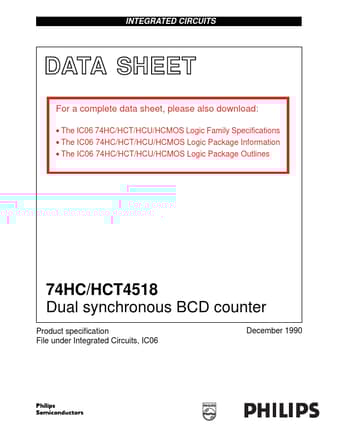

Preview of 74HC4518 PDF

Datasheet Details

Part number:

74HC4518

Manufacturer:

NXP ↗ Semiconductors

File Size:

119.67 KB

Description:

Dual synchronous bcd counter.
INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download:

* The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
