BUK954R2-55B, BUK964R2-55B - N-channel TrenchMOS logic level FET

BUK954R2-55B Description

BUK954R2-55B N-channel TrenchMOS logic level FET Rev.03 * 8 June 2010 Product data sheet 1.Product profile 1.1 General .
Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology.

BUK954R2-55B Features

* Low conduction losses due to low on-state resistance
* Q101 compliant
* Suitable for logic level gate drive sources

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BUK954R2-55B, BUK964R2-55B. Please refer to the document for exact specifications by model.

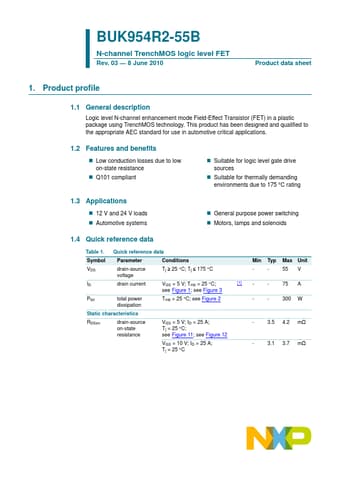

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BUK954R2-55B, BUK964R2-55B
Manufacturer
NXP ↗ Semiconductors
File Size
172.57 KB
Datasheet
BUK964R2-55B_NXPSemiconductors.pdf
Description
N-channel TrenchMOS logic level FET
Note
This datasheet PDF includes multiple part numbers: BUK954R2-55B, BUK964R2-55B.
Please refer to the document for exact specifications by model.
