BUK9540-100A - TrenchMOS transistor Logic level FET

BUK9540-100A Description

Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL .
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope available in TO220AB and SOT404 .

BUK9540-100A Applications

* BUK9540-100A BUK9640-100A QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V VGS = 10 V MAX. 100 37 138 175 40 39 UNIT V A W ˚C mΩ mΩ PINNING TO220AB & SOT404

📥 Download Datasheet

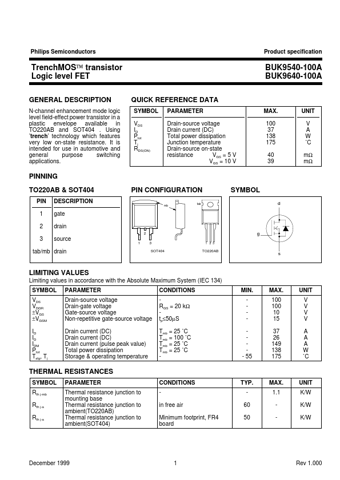

Preview of BUK9540-100A PDF
datasheet Preview Page 2 datasheet Preview Page 3
