BUK954R4-40B, BUK964R4-40B - TrenchMOS logic level FET

BUK954R4-40B Description

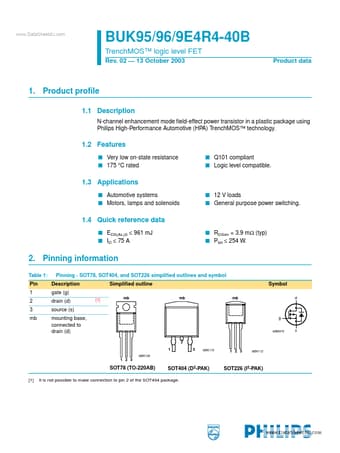

www.DataSheet4U.com BUK95/96/9E4R4-40B TrenchMOS™ logic level FET Rev.02 * 13 October 2003 Product data 1.Product profile 1.1 .
N-channel enhancement mode field-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

BUK954R4-40B Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 961 mJ s ID ≤ 75 A s RDSon = 3.9 mΩ (typ) s Ptot ≤ 254 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT78, SOT404, and SOT226 simplified outlines and
