KMA199E

Programmable angle sensor

KMA199E Features

* High precision sensor for magnetic

* Ratiometric output voltage angular measurement

* Programmable user adjustments,

* Independent from the magnetic field including zero angle and angular range strength above 35 kA/m

* Single package sensor system

* Programming via

KMA199E General Description

The KMA199E is a magnetic angle sensor system. The MagnetoResistive (MR) sensor bridges and the mixed signal Integrated Circuit (IC) are integrated into a single package. This angular measurement system KMA199E is pre-programmed, pre-calibrated and therefore, ready to use. The KMA199E allows user sp.

KMA199E Datasheet (268.62 KB)

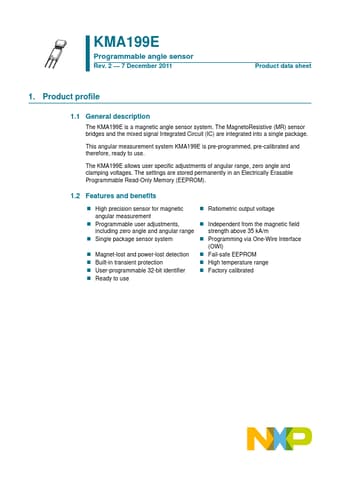

Preview of KMA199E PDF

Datasheet Details

Part number:

KMA199E

Manufacturer:

NXP ↗ Semiconductors

File Size:

268.62 KB

Description:

Programmable angle sensor.
