KMA210

Programmable angle sensor

KMA210 Features

* High precision sensor for magnetic

* High temperature range up to 160 C angular measurement

* Single package sensor module with

* Ratiometric analog output voltage integrated filters for improved ElectroMagnetic Compatibility (EMC)

* Automotive qualified in accordance

KMA210 General Description

The KMA210 is a magnetic angle sensor module. The MagnetoResistive (MR) sensor bridges, the mixed signal Integrated Circuit (IC) and the required capacitances are integrated into a single package. This angular measurement module KMA210 is pre-programmed, pre-calibrated and therefore, ready to use. T.

KMA210 Datasheet (302.03 KB)

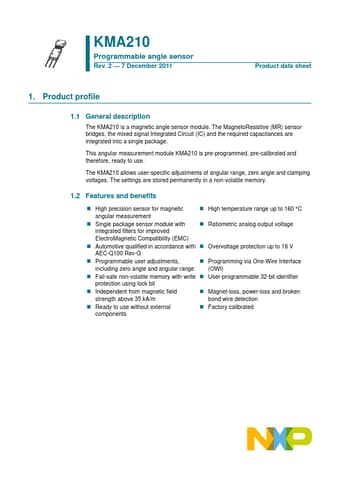

Preview of KMA210 PDF

Datasheet Details

Part number:

KMA210

Manufacturer:

NXP ↗

File Size:

302.03 KB

Description:

Programmable angle sensor.
