KMA010P20Q

P-Ch Trench MOSFET

KMA010P20Q Features

* VDSS=-20V, ID=-10A. Drain-Source ON Resistance. : RDS(ON)=14m (Max.) @ VGS=-4.5V, ID=-10A. : RDS(ON)=24m (Max.) @ VGS=-2.5V, ID=-7.6A. A D P G H T L 8 5 B1 B2 1 4 DIM A B1 B2 D G H L P T MILLIMETERS _ 0.2 4.85 + _ 0.2 3.94 + _ 0.3 6.02 + _ 0.1 0.4 + 0.15+0.1/-0.05 _ 0.2 1.63 + _ 0.2 0.65 + 1.2

KMA010P20Q Datasheet (783.31 KB)

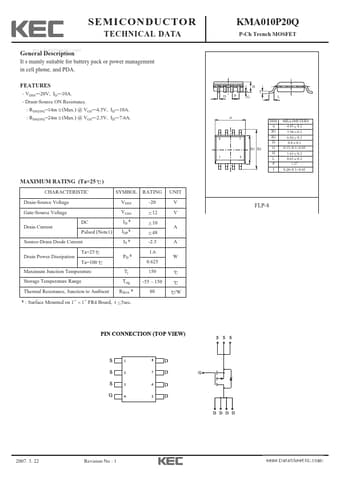

Preview of KMA010P20Q PDF

Datasheet Details

Part number:

KMA010P20Q

Manufacturer:

KEC

File Size:

783.31 KB

Description:

P-ch trench mosfet.
