KMA221

Programmable angle sensor

KMA221 Features

* High precision sensor for magnetic

* High temperature range up to 160 C angular measurement

* Single package sensor module with

* Analog ratiometric output voltage integrated filters for improved ElectroMagnetic Compatibility (EMC)

* Automotive qualified in accordance

KMA221 General Description

The KMA221 is a magnetic angle sensor module. The MagnetoResistive (MR) sensor bridges, the mixed signal Integrated Circuit (IC) and the required capacitors are integrated into a single package. This angular measurement module KMA221 is pre-programmed, pre-calibrated and therefore, ready to use. The.

KMA221 Datasheet (336.83 KB)

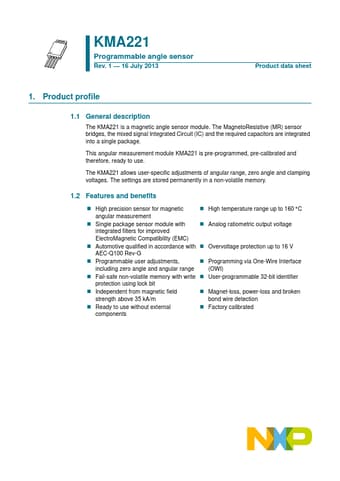

Preview of KMA221 PDF

Datasheet Details

Part number:

KMA221

Manufacturer:

NXP ↗

File Size:

336.83 KB

Description:

Programmable angle sensor.
