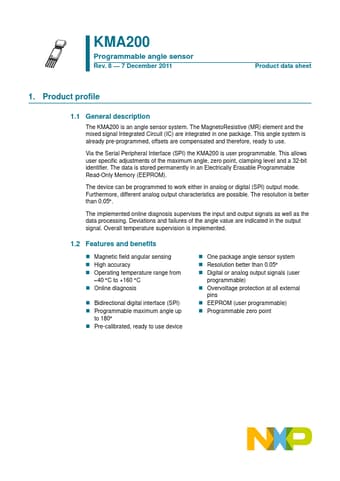

KMA200 Programmable angle sensor

The KMA200 is an angle sensor system. The MagnetoResistive (MR) element and the mixed signal Integrated Circuit (IC) are integrated in one package. This angle system is already pre-programmed, offsets are compensated and therefore, ready to use. Via the Serial Peripheral Interface (SPI) the KMA200 i.

KMA200 Features

* Magnetic field angular sensing

* High accuracy

* Operating temperature range from 40 C to +160 C

* Online diagnosis

* Bidirectional digital interface (SPI)

* Programmable maximum angle up to 180

* Pre-calibrated, ready to use device

* One package angle sensor s
