KMA2D4P20S

P-Ch Trench MOSFET

KMA2D4P20S Features

* VDSS=-20V, ID=-2.4A. Drain-Source ON Resistance. : RDS(ON)=100m (Max.) @ VGS=-4.5V. A 2 E B 3 : RDS(ON)=175m (Max.) @ VGS=-2.5V. 1 DIM MILLIMETERS _ 0.05 A 2.926 + _ 0.05 B 1.626 + 1.25 MAX C _ 0.05 D 0.40 + _ 0.15 E 2.80 + _ 0.10 G 1.90 + _ 0.05 H 0.95 + _ 0.05 J 0.15 + 0.00 ~ 0.10 K _ 0.08 M

KMA2D4P20S Datasheet (450.99 KB)

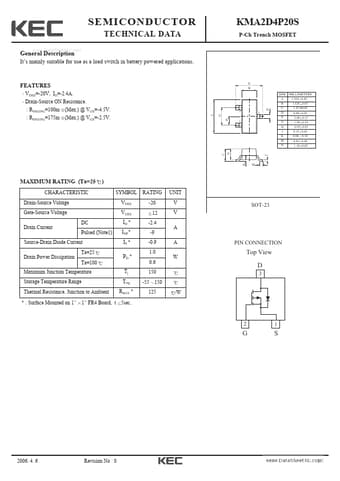

Preview of KMA2D4P20S PDF

Datasheet Details

Part number:

KMA2D4P20S

Manufacturer:

KEC

File Size:

450.99 KB

Description:

P-ch trench mosfet.
