A5G26H605W19N Airfast RF Power GaN Transistor

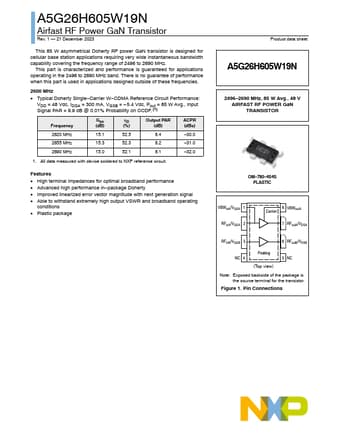

A5G26H605W19N Airfast RF Power GaN Transistor Rev. 1 21 December 2023 This 85 W asymmetrical Doherty RF power GaN transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz. This part is characterized and performance is guaranteed for applications operating in the 2496 to 2690 MHz band. There is no guarantee of performance when this part is used in applications designed outside o.

A5G26H605W19N Features

* High terminal impedances for optimal broadband performance

* Advanced high performance in

* package Doherty

* Improved linearized error vector magnitude with next generation signal

* Able to withstand extremely high output VSWR and broadband operating conditio

A5G26H605W19N Datasheet (198.28 KB)
