BGY588 Datasheet - NXP

CATV amplifier

BGY588 General Description

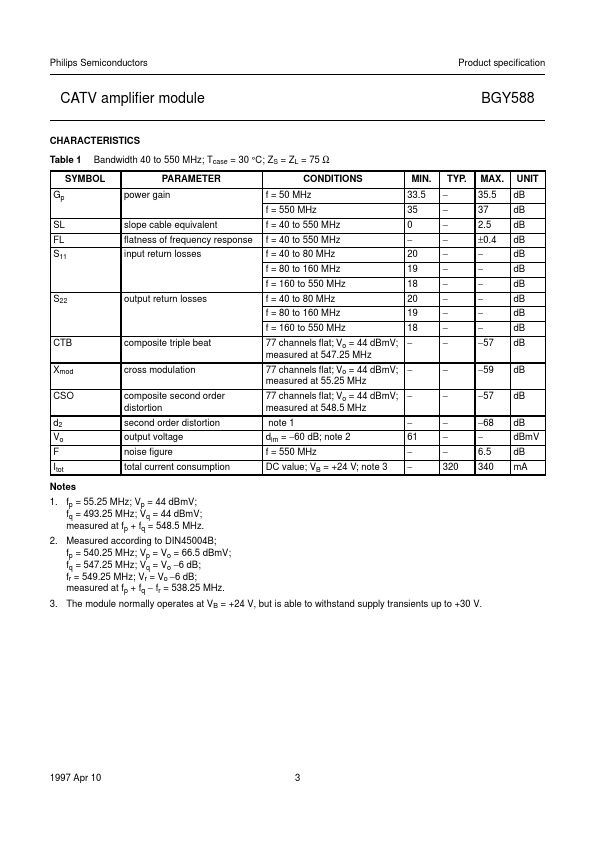

Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of +24 V (DC) and intended for use as a line-extender. QUICK REFERENCE DATA SYMBOL Gp Itot PARAMETER power gain total current consumption (DC) CONDITIONS f = 50 MHz f = 550 MHz VB = +24 V M.

BGY588 Datasheet (48.81 KB)

BGY588 Datasheet Preview — Preview of BGY588 PDF

Datasheet Details

Part number:

BGY588

Manufacturer:

NXP ↗

File Size:

48.81 KB

Description:

Catv amplifier.

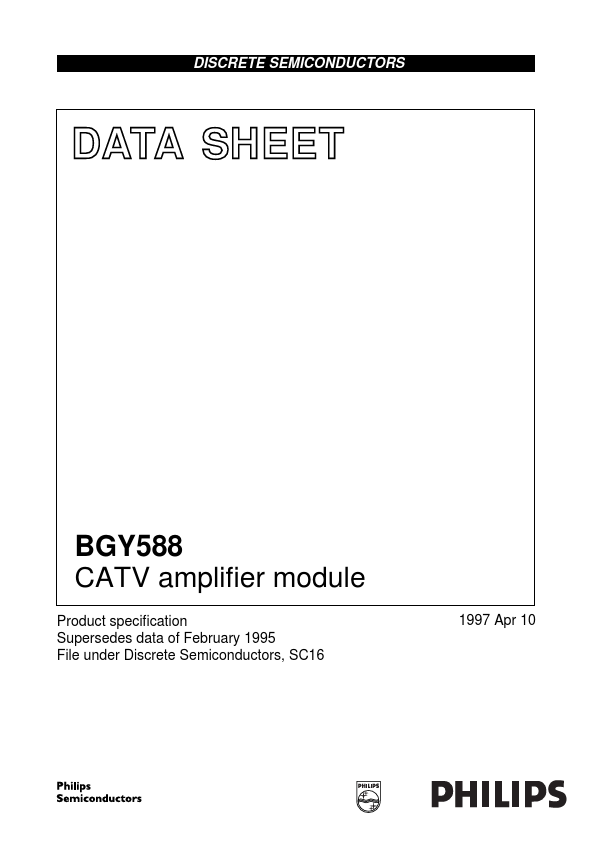

DISCRETE SEMICONDUCTORS DATA SHEET BGY588 CATV amplifier module Product speciﬁcation Supersedes data of February 1995 File under Discrete Semiconduc.
