BGY588N Datasheet - NXP

CATV amplifier

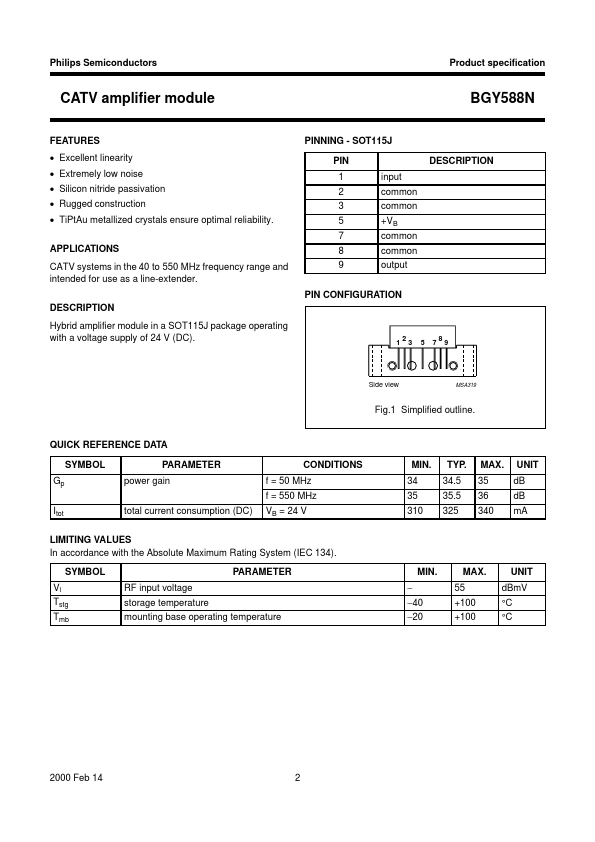

BGY588N Features

* Excellent linearity

* Extremely low noise

* Silicon nitride passivation

* Rugged construction

* TiPtAu metallized crystals ensure optimal reliability. APPLICATIONS CATV systems in the 40 to 550 MHz frequency range and intended for use as a line-extender. DES

BGY588N General Description

Hybrid amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC). handbook, halfpage BGY588N PINNING - SOT115J PIN 1 2 3 5 7 8 9 input common common +VB common common output DESCRIPTION PIN CONFIGURATION 1 2 3 5 7 8 9 Side view MSA319 Fig.1 Simplified outline. Q.

BGY588N Datasheet (46.07 KB)

BGY588N Datasheet Preview — Preview of BGY588N PDF

Datasheet Details

Part number:

BGY588N

Manufacturer:

NXP ↗

File Size:

46.07 KB

Description:

Catv amplifier.
DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D252 BGY588N CATV amplifier module Product speciﬁcation Supersedes data of 1999 Mar 29 2000 Feb.
