BGY588C - gain push-pull amplifier

Datasheet Summary

Description

Hybrid amplifier module operating at a supply voltage of 24 V (DC) in a SOT115J package.

CAUTION This device is sensitive to ElectroStatic Discharge (ESD).

Therefore care should be taken during transport and handling.

Features

  • s s s s s Excellent linearity Extremely low noise Silicon nitride passivation Rugged construction TiPtAu metallized crystals ensure optimal reliability 1.3.

📥 Download Datasheet

Datasheet preview – BGY588C

Datasheet Details

Part number BGY588C
Manufacturer NXP
File Size 70.23 KB
Description gain push-pull amplifier
Datasheet download datasheet BGY588C Datasheet

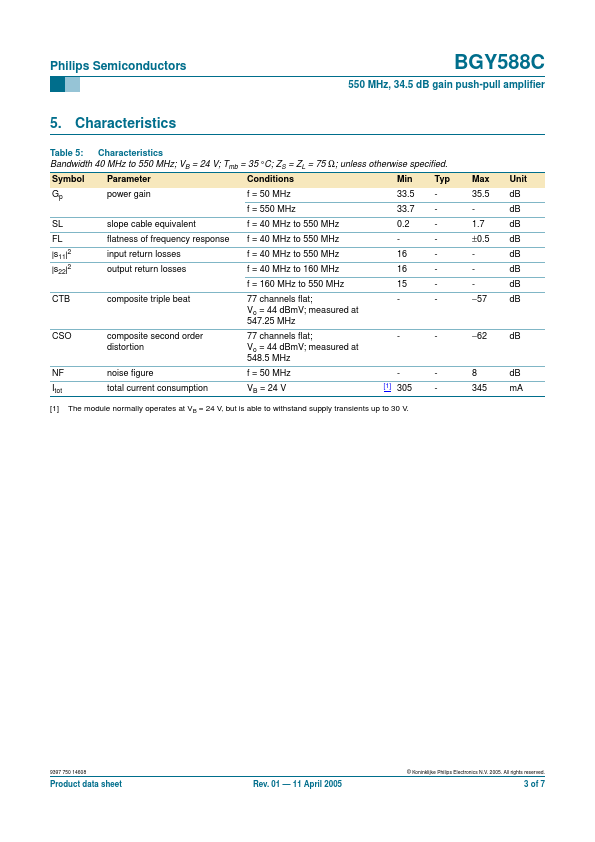

Additional preview pages of the BGY588C datasheet.

📁 Similar Datasheet

  • BGY114A - UHF amplifier modules (Philips)
  • BGY114B - UHF amplifier modules (Philips)
  • BGY114C - UHF amplifier modules (Philips)
  • BGY91A - UHF Power Amplifier Module (Signetics)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com BGY588C 550 MHz, 34.5 dB gain push-pull amplifier Rev. 01 — 11 April 2005 Product data sheet 1. Product profile 1.1 General description Hybrid amplifier module operating at a supply voltage of 24 V (DC) in a SOT115J package. CAUTION This device is sensitive to ElectroStatic Discharge (ESD). Therefore care should be taken during transport and handling. MSC895 1.2 Features s s s s s Excellent linearity Extremely low noise Silicon nitride passivation Rugged construction TiPtAu metallized crystals ensure optimal reliability 1.3 Applications s CATV systems in the 40 MHz to 550 MHz frequency range and intended for use as a line extender. 1.
