SSTVF16857 Datasheet - NXP

SSTVF16857 - DDR PC1600-PC3200 14-bit SSTL_2 registered driver

The SSTVF16857 is a 14-bit SSTL_2 registered driver with differential clock inputs, designed to operate between 2.3 V and 2.7 V.

VDDQ must not exceed VCC.

Inputs are SSTL_2 type with VREF normally at 0.5 *VDDQ.

The outputs support class I which can be used for standard stub-series applications or

SSTVF16857 Features

* Stub-series terminated logic for 2.5 V VDDQ (SSTL_2)

* Optimized for PC 2700 DDR (Double Data Rate) SDRAM

* Suitable for PC1600/PC2100 DDR SDRAM applications

* Suitable for PC3200 applications when used at VDD = 2.6 V

* Inputs compatible with JESD8-9 SSTL_2

SSTVF16857_PhilipsSemiconductors.pdf

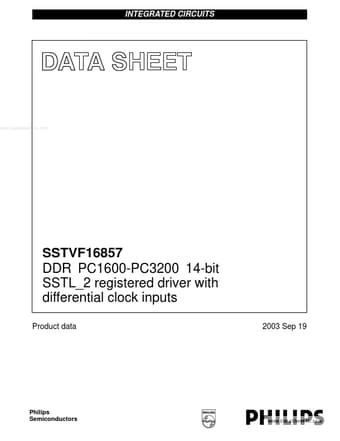

Preview of SSTVF16857 PDF
SSTVF16857 Datasheet Preview Page 2 SSTVF16857 Datasheet Preview Page 3

Datasheet Details

Part number:

SSTVF16857

Manufacturer:

NXP ↗

File Size:

157.29 KB

Description:

Ddr pc1600-pc3200 14-bit sstl_2 registered driver.
